Rocket 7600 Series Pro-Class PCIe Gen5 x16 NVMe RAID Solutions
Professional Grade NVMe RAID Storage Solutions for AI and Industrial Server & Workstation Applications
64GB/s of PCIe Gen5 Transfer Bandwidth
Industry Proven NVMe RAID 0, 1, & 10 Technology
Environmental Sensor & Logging Solution
Intelligent, Pro-Active PCIe Gen5 Cooling Solutions
SafeStorage Data Encryption Solution
High-Performance Pro-Class NVMe RAID Solutions for AI Server & Workstation Applications
HighPoint's revolutionary Rocket 7600 series Pro-Class NVMe RAID AICs and Adapters are capable of directly hosting up to 8 M.2 or 2.5” U.2, U.3 and E3.S media, and can be configured to host as many as 32 NVMe devices via backplane connectivity. Engineered to comply with enterprise grade computing environments and built to accommodate today’s most data-intensive AI applications, ML solutions, Scientific and Engineering workflows and Professional Media platforms, Rocket 7600 series solutions have been designed to comply with industry standard server and workstation form factors to ensure maximum reliability, endurance and compatibility. HighPoint’s innovative PCIe Switching Architecture enables each AIC and Adapter to maximize transfer performance and storage capacity over x16 lanes of host bandwidth, and deliver real-world performance in excess of 56GB/s.
Key Features
-
8-Dedicated PCIe 5.0 device channels
-
Directly Supports up to 8x NVMe SSDs & as many as 32 via storage backplane connectivity
-
High-Performance 48-Lane Gen5 Switch Architecture: x16 lanes of dedicated upstream & x4 lanes of downstream bandwidth for each device channel
-
Delivers 64GB/s of Bandwidth & Real-world Sustained transfer speeds up to 60GB/s
-
Intelligent, Pro-Active Gen5 Cooling Solution
-
Comprehensive Storage Health Monitoring, Management & Analysis Suite
-
Environmental Sensor & Logging Solution
-
Industry-proven NVMe RAID Technology supports up to four RAID 0, 1 or 10 configurations
-
Optional Boot-RAID Capability for Linux & Windows
-
SafeStorage TCG SSD Solution
Featuring 48 Lanes of Dedicated PCIe Gen5 Bandwidth
HighPoint’s high-performance PCIe Gen5 switching architecture integrates Broadcom’s PEX89048 switch IC to provided 48-lanes of internal Gen5 host bandwidth; x16 lanes of which are allocated to the upstream port (connection to the host platform), with x4 lanes dedicated to each device channel. The innovative architecture enables the Rocket 7600 series AICs and Adapters to deliver up to 64GB/s of transfer bandwidth, minimize latency, and facilitate consistent, robust I/O throughput.
Engineered for Seamless Integration with Enterprise Computing Environments
Engineered to excel in enterprise and business class server and workstation environments, Rocket 7600 RAID/Pro series NVMe AICs and Adapters are fully compliant with CEM (Card Electromechanical) PCIe card specifications to ensure robust connectivity and guarantee compatibility with industry standard server and datacenter chassis form factors. The innovative, refined PCB design significantly lowers power consumption and enhances signal integrity.
Compliant with Industry Standard Server & Rackmount Chassis: Rocket 7600 adapters are LP-MD2 form factor PCIe devices, are compliant with VPP (Virtual Pin Point) and UBM (Universal Backplane Management) backplane specifications, and SFF-9402 cable and port connectivity for industry-standard 2.5” drive chassis and NVMe media.
Field Replaceable Units (FRU): Rocket 7600 series Pro-Class RAID AICs and adapters are field replaceable units (FRU). This enables service providers to easily procure replacements with the correct model/hardware version combination.
Advanced Technology and Set Maximizes Performance and Data Security
Rocket 7600 Series Pro-Class PCIe Gen5 x16 NVMe RAID AICs and Adapters are engineered to enhance the productivity and storage performance of a today’s most data-intensive applications. In addition to matching the capabilities of our Rocket 1600 series Switch AICs and Adapters, Rocket 7600 Pro-Class RAID Solutions can host as many 4 independent RAID 0, 1 or 10 arrays, including bootable volumes. Advanced features including Hot-Swap & Hot-Plug capability, comprehensive RAID storage management and monitoring suite, an integrated Environmental Sensor & Logging solution, and, proven data encryption technology enable administrators to fine tune NVMe storage configurations for a wide range of high-performance workflows.
Comprehensive Storage Health Monitoring, Management & Analysis Suite
Rocket 7600 series solutions are equipped with HighPoint’s intuitive yet comprehensive monitoring, management and analysis suite, which enables administrators to easily configure and maintain the platform’s NVMe storage ecosystem with a few simple clicks and commands. The package consists of our WebGUI and CLI management utilities for OS-level administration, and a host of pre-OS level tools in the form of OOB (out-of-band) management, HII and UEFI. RAID arrays created using these interfaces will be recognized as single, physical disks, which can be partitioned and formatted as desired, using the host OS’s standard storage management interface.
True Hot-Plug & Hot-Swap Capability
Rocket 7600 series Adapters are capable of providing true NVMe SSD Hot-Swap and Hot-Plug capability; an essential feature of professional server and datacenter platform. The adapters utilize a technique known as Synthetic Hierarchy to isolate the host operating system from any PCIe topology changes (physical changes) and any events associated with the sudden addition or removal of an NVMe device. The technology enables the technician or administrator to safely add or remove individual SSDs or RAID arrays without rebooting the OS or powering down the host system, via set of simple commands issued from the WebGUI or CLI management tools.
Online RAID Roaming Technology
HighPoint Online Roaming technology enables NVMe RAID configurations to be moved from one AIC or Adapter to another without putting your data assets at risk - all exiting logical volumes will remain intact and accessible; no reconfiguration is required.
Integrated LCD Indication & Alert System
Rocket 7600 Series Pro-Class RAID AICs and Adapters feature built-In early warning LED Indicators, integrated on the left-side of the PCB and viewable through the PCIe bracket. This intuitive system enables a field technician to instantly asses the operational status and condition of NVMe storage, and is designed to work in conjunction with the RAID management suite. The AIC/Adapter will initiate simple color coding and flashing patterns to convey the current status of various hardware attributes, such as the strength of the PCIe connection, status of hosted NVMe SSDs and RAID arrays, and any temperature warnings reported by SHI and the hardware cooling system.
OOB Management
Rocket 7600 series adapters provide OOB (out-of-band) management support, which is an essential component of professional-grade server infrastructure. MBC & MCTP over PCIe enables an administrator to securely interface with the adapter without the need for internet access. The service is scalable and can be used to administrate multiple servers via Linux command prompts to manage storage in both Pre-OS and OS-level environments.
SafeStorage - OPAL SED Solution
Developed to accommodate large-scale RAID arrays as well as individual SSDs, SafeStorage is a comprehensive OPAL SSC TCG based NVMe Hardware Encryption Solution designed to safeguard critical assets by preventing access to stored data when physical disks are misplaced or stolen.
Intelligent, Pro-Active PCIe Gen5 Cooling Solutions

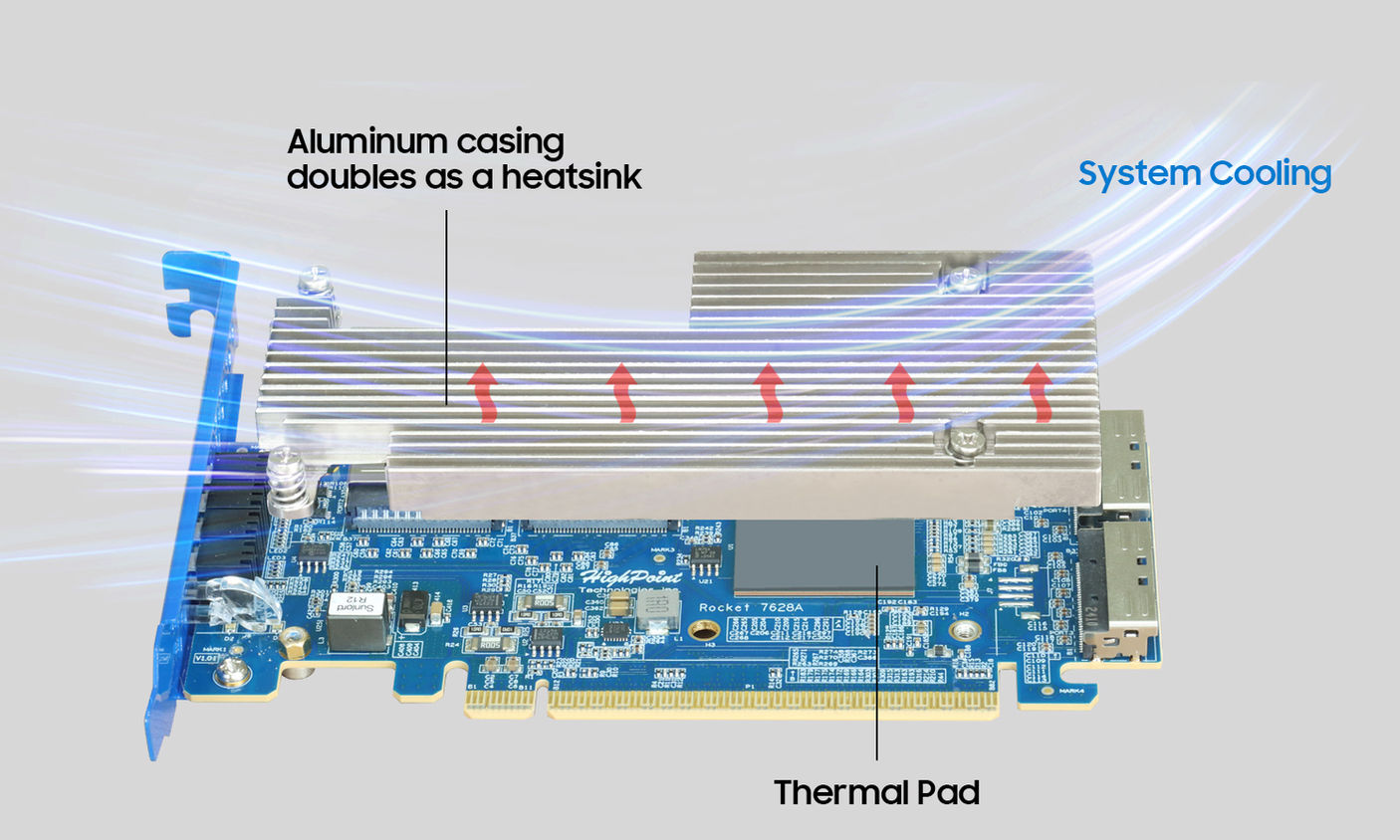

HighPoint understands how critical heat management is for modern high-performance computing platforms that employ NVMe media. It is key to maintaining long-term durability and performance potential of any given system. Our NVMe solutions have always been built with these requirements in mind, and challenge performance-robbing thermal throttling head on. Rocket 7600 Series Pro-Class PCIe Gen5 x16 NVMe RAID AICs and Adapters pair the industry’s most advanced hardware cooling system with a powerful software suite designed enhance the reliability of NVMe media and maximize storage performance by keeping the threat of performance -robbing thermal throttling at bay.
Key Features:
Multi-Layered Hardware Cooling System: Full-length aluminum heatsinks and/or low-decibel cooling fans, copper NVMe contacts, and robust thermal padding
Integrated Notification & Alert System: An audible alarm and series of LED indicators enable administrators to instantly asses potential heat-related issues in the field
SHI – Storage Health Inspector: Utilizes S.M.A.R.T. to track and report SSD temperature and health status
Temperature Threshold Optimization: SHI will automatically establish a threshold warning system to match the specifications of each SSD
Email Notification System: Sends temperature warnings and alerts to one or more administrators
Adjustable Fan Control for Rocket 7600 AICs: Manual fan control for unique applications and environments - Select from 5 speed settings
Environmental Sensor & Logging Solution
Enhance Data Integrity and Operational Efficiency with Advanced Environmental Monitoring, Logging & Analysis
HighPoint’s advanced Environmental Sensor and Logging Solution is integrated into the WebGUI Management Tool and will automatically track and log the temperature and power consumption of the AIC/Adapter and hosted NVMe media. This type of behavioral data is especially useful for data-intensive applications that require storage capable of operating at peak I/O for extended durations, and can be used to optimize and troubleshoot NVMe storage, and fine-tune configurations to maximize performance and reliability by examining SSD behavior during peak I/O.
Key Features:
Real-Time Monitoring: sensors are polled every 60 seconds, and data is immediately logged and presented on screen in Real-Time.Monitoring: sensors are polled every 60 seconds, and data is immediately logged and presented on screen in Real-Time.
Historical Data Logging: Detailed logs of environmental attributes are recorded in blocks of 5-Working days. This data can prove to be invaluable when diagnosing past issues and devising ways to improve performance and efficiency.
Easy-to-Read Graphs & Line charts: Data is presented via a selection of easy-to-read graphs and line charts which present the temperature, power consumption and fan behavior of all connected NVMe SSDs and host AIC/Adapter.
Global Partners, Distributors & Resellers, System Integrators
.webp)
Gen5 NVMe Switch AICs & Adapters
Gen5 NVMe Switch AICs & Adapters
.webp)
Gen5 NVMe Switch AICs & Adapters
Feature | Description |
Bus Interface | PCIe 5.0 x16 |
Port Count | 8x NVMe Ports |
Connector Type | M.2 |
Device & Form factor | 2242, 2260, 2280 |
Cooling | Full-Length Aluminum Heatsink with cooling fan |
Ext. Power Connector | Yes (uses PCIe Standard 2x3 Power Connector) |
AIC Form factor | Full-Height, Single-Width |
Operating System Support | Windows & Linux |
FRU | Yes (stores VPD data) |
Hardware Secure Boot | Yes |
Synthetic Hierarchy | Yes |
RAID Support | Single, RAID 0, 1, 10 |
HighPoint Advanced Feature Suite | Yes |
Rocket 7608A - PCIe Gen5 x16 to 8-M.2x4 NVMe RAID AIC
Product Lines
.webp)
Gen5 NVMe Switch AICs & Adapters
Gen5 NVMe Switch AICs & Adapters
Gen5 NVMe Switch AICs & Adapters
Feature | Description |
Bus Interface | PCIe 5.0 x16 |
Port Count | 8x NVMe Ports |
Connector Type | MCIO (SFF-1016 8x) |
Device & Form factor | U.2/U.3, E3.S |
Cooling | Full-Length Aluminum Heatsink |
Adapter Form factor | LP-MD2, Single-Width |
Operating System Support | Windows & Linux |
FRU | Yes (stores VPD data) |
Hardware Secure Boot | Yes |
Hot-Plug & Hot-Swap | Yes |
OOB Managament | Yes |
Synthetic Hierarchy | Yes |
RAID Support | Single, RAID 0, 1, 10 |
HighPoint Advanced Feature Suite | Yes |
