SSD7749M2
16x 22110 M.2 to PCle 4.0 x16 NVMe RAID AIC
The SSD7749M2 is the industry’s densest, single-sided PCIe Gen4 NVMe Storage Solution
Key Features
-
Compact, Single-Sided High-Density Storage Solution: Directly hosts up to 16x 2280 M.2 Form factor SSDs of any capacity
-
High-Performance PCIe Gen4 Switch Architecture: x16 lanes of dedicated upstream and x4 lanes of downstream bandwidth for each device port
-
Sustained transfer speeds up to 28,000MB/s
-
Precision Engineered Dual-Width Cooling Solution Enhances reliability & Prevents Thermal Throttling
-
Comprehensive Management & Monitoring Suite
-
Supports up to four RAID 0, 1 or 10 arrays
-
Boot-RAID Capability for Linux & Windows
-
SafeStorage SED Solution
Armed with 16 independent NVMe device channels, and HighPoint’s proven PCIe Gen4 Switch Architecture, SSD7749M2 RAID AICs is capable of maintaining long-term sustained write performance in excess of 20GB/; ideal for data-intensive AI, DL and ML Training Solutions, Scientific Research, Animation & Visual Effects, and Engineering & 3D Design platforms.

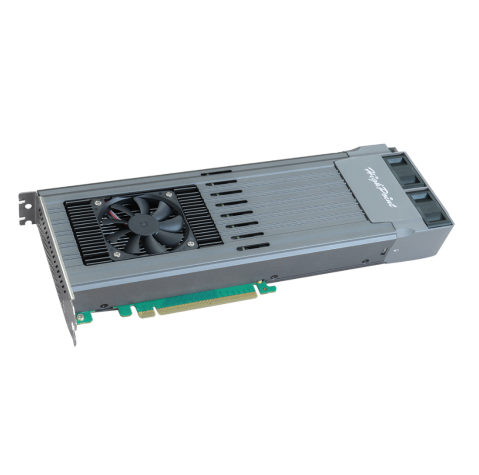

Unique, dual-sided M.2 loading trays enable the SSD7749M2 to directly host up to 16 M.2 SSDs using only one side of the PCB! This results in a compact AIC form factor comparable to that of a dual-width GPU.
Advanced Architecture Maximizes Capacity and Performance
Innovative, dual-sided, vertically aligned tool-less M.2 loading trays directly host up to sixteen 2280 form factor M.2 SSDs using only one side of the PCB. This unique architecture results in an impressively slim hardware footprint, with a form factor similar to that of a high-end dual-width GPU.
The sixteen device channels can operate independently or concurrently, and enable the SSD7749M2 to support an astonishing 128TB of M.2 storage, with the potential to scale up to 256TB in the near future, all from a single PCIe slot!
Industry Proven PCIe Gen4 Switch Technology
_gif.gif)
To ensure each SSDs operates and perform optimally, the AIC incorporates HighPoint’s proven x48 lane PCIe Switching Technology, which allocates a dedicated x16 lanes of upstream bandwidth (connection to the host platform), and x2 lanes of dedicated downstream bandwidth to each SSD. This enables the SSD7749M2 to optimize signal integrity, reduce latency and deliver an astonishing level of data throughput; upwards of 28GB/s of real-world transfer performance! All of this results in a truly one-of-a-kind, feature-rich NVMe Storage solution, perfectly suited for data-intensive applications such as Healthcare Diagnostics, Scientific Research and Simulation, Deep Learning Model Training, AI-Powered Video and Image Processing, and AI-Powered Cybersecurity.

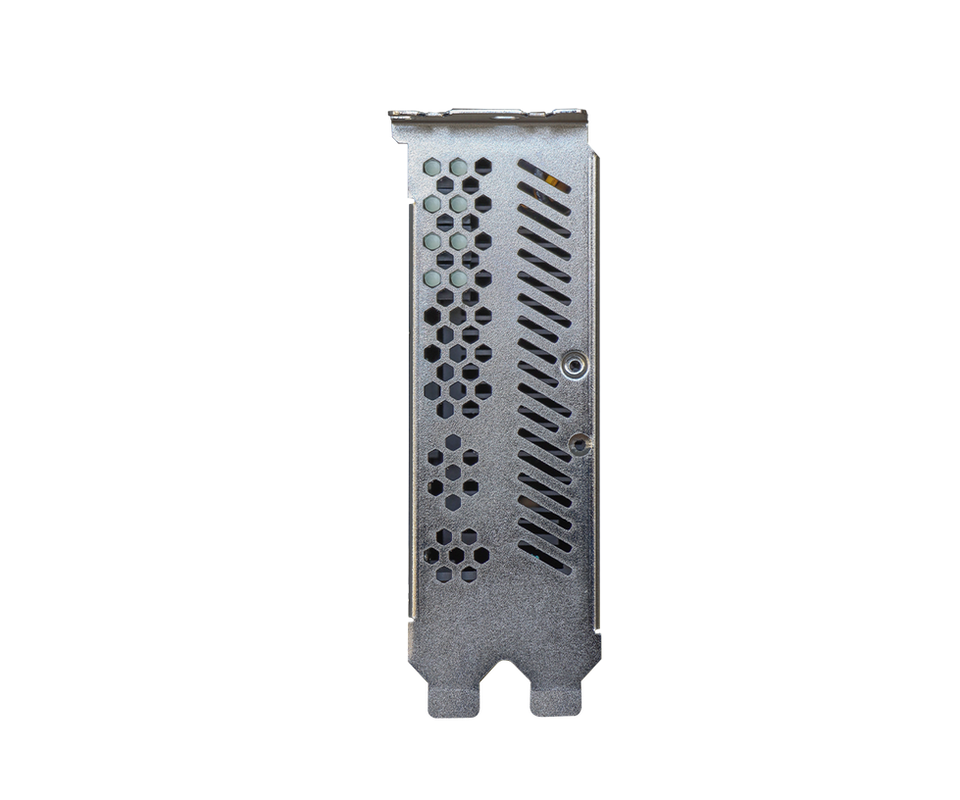

State-of-the-Art Three-Pronged Cooling Solution Enhances NVMe Reliability and Performance
The advanced, three-pronged, dual-width NVMe cooling system, combines a full-length aluminum casing , powerful cooling fans, and a revolutionary dual-sided SSD mounting system to protect M.2 media and prevent thermal throttling
-
Isolates M.2 Media from the hardware environment
-
Eight tool-less dual-sided loading trays arrange SSDs vertically to optimize airflow while simplifying the service and upgrade process
-
3x Low-Decibel cooling fans rapidly condense & circulate cool air throughout the casing
HighPoint's SHI (Storage Health Inspector) service monitors the temperature of NVMe SSDs in realy time, and is integrated directly into the NVMe storage management & monitoring suite.
-
Real-Time Temperature Monitoring
-
Endurance Rating for each SSD (TBW/DWPD)
-
Configurable Temperature Thresholds & Warning System with Email Notification
-
Fan Speed
Comprehensive NVMe Storage Management and Monitoring Suite
The SSD7749M2’s comprehensive NVMe storage management and monitoring suite enables administrators to easily configure and maintain the platform’s NVMe storage ecosystem with a few simple clicks and commands, from within and outside of the OS. RAID arrays will be recognized as single, physical disks, and can be configured and tailored for a variety of roles, such an application drive or virtual scratch disk, data archiving or even for hosting bootable OS’s or virtualization platforms.
Advanced Gen4 Data Security Suite
SSD7749M2 RAID AICs are protected by HighPoint’s SafeStorage - a state-of-the-art data encryption solution for OPAL SSC compliant SED drives and arrays.
Stored data is automatically locked down whenever storage is unplugged from the AIC, effectively preventing unauthorized access to sensitive information should physical disks be misplaced or stolen.
Software and Documents
NOTE: Please email to GeneralSales@highpoint-tech.com for more information about upgrading to latest software and documents.
Product feature | |
Bus Interface | PCI-Express 4.0 x16 |
Number of Channel / Port | 16x M.2 NVMe port (Dedicated PCIe 4.0 x2 per port) |
Number of device | 16x M.2 NVMe |
SSD Form Factor | 2242/2260/2280 |
Data Transfer Rate | Up to 28GB/s |
External Power Support | Yes (Uses 6-pin PCIe Power Connector) |
LED Indication | Yes |
Audible Alarm | Yes |
Storage Security Suite | |
SED Support | SafeStorage SED Solution |
Mechanical Specifications | |
Form Factor | Full-Height, Full-Length, Dual-Width |
Dimensions | 11.18''W x 4.92''H x 1.53''D |
Weight | 3.24 lbs |
Warranty | 2 Years |
Cooling Solution | PCIe Gen4 Dual-Width NVMe Hyper-Cooling Solution |
Full-Length Aluminum casing with integrated Low-Decibel Cooling Fan & Thermal Padding | |
Fan Control | Yes |
Toolless SSD mounting system | Yes |
Supported Systems | |
Supported Operating Systems | Only Supports 64-bit operating systems |
Windows 11, 10;
Windows Server 2022, 2019, 2016;
Microsoft Hyper-V | |
RHEL/Debian/Ubuntu/Fedora/Proxmox/Rocky Linux(Linux kernel 3.10 and later)
| |
Platform Support | PC Platforms: Any PC System or Motherboard with an industry standard PCIe x16 physical Slot (Bifurcation is not required) |
Secure Boot (PC platforms) | Windows OS |
NVMe Configuration | |
RAID Support | Single, RAID 0, 1, 10 |
TRIM RAID Support | Single, RAID 0, 1, 10 |
Storage Mode-NVMe | |
Data RAID(Non-Bootable) | Windows, Linux |
Boot RAID | Windows: Windows 10, Windows server 2016 and later |
Linux: RHEL/Debian/Ubuntu/Rocky Linux | |
NVMe RAID Management | |
Management Suites | WebGUI (Browser-Based management tool) |
CLI (Command Line Interface- scriptable configuration tool) | |
API package | |
UEFI Tool | |
SMTP Email Alert Notification | Yes |
Alarm Buzzer | Yes |
Storage Health Inspector | Yes |
NVMe SMART status | Yes |
Automatic and configurable RAID Rebuilding Priority | Yes |
Auto resume incomplete rebuilding after power on or reboot system | Yes |
Single-RAID or Multi-RAID Arrays per Controller | Yes |
Cross-Sync RAID Solution Across Controllers | Yes |
Advanced RAID features | |
Flash ROM for Upgradeable UEFI | Yes |
Bootable RAID Array | Yes |
Multiple RAID Partitions supported | Yes |
Online Array Roaming | Yes |
RAID Quick Initialization for fast array setup | Yes |
Global Hot Spare Disk support | Yes |
Operating Environment | |
Work Temp | +5°C ~ + 55°C |
Storage Temp | -20°C ~ +80°C |
Operating Voltage | PCI-e: 12V, 3.3V |
Power | Typical: 17.28W |
MTBF (Mean Time Before Failure) | 920,585 Hours |
Certification / Approval | CE, FCC, RoHS, REACH, WEEE |
Kit Contents | |
Kit Contents | 1x SSD7749M2 |
1x Quick Installation Guide | |
16x M.2 rubber twist-pins |
