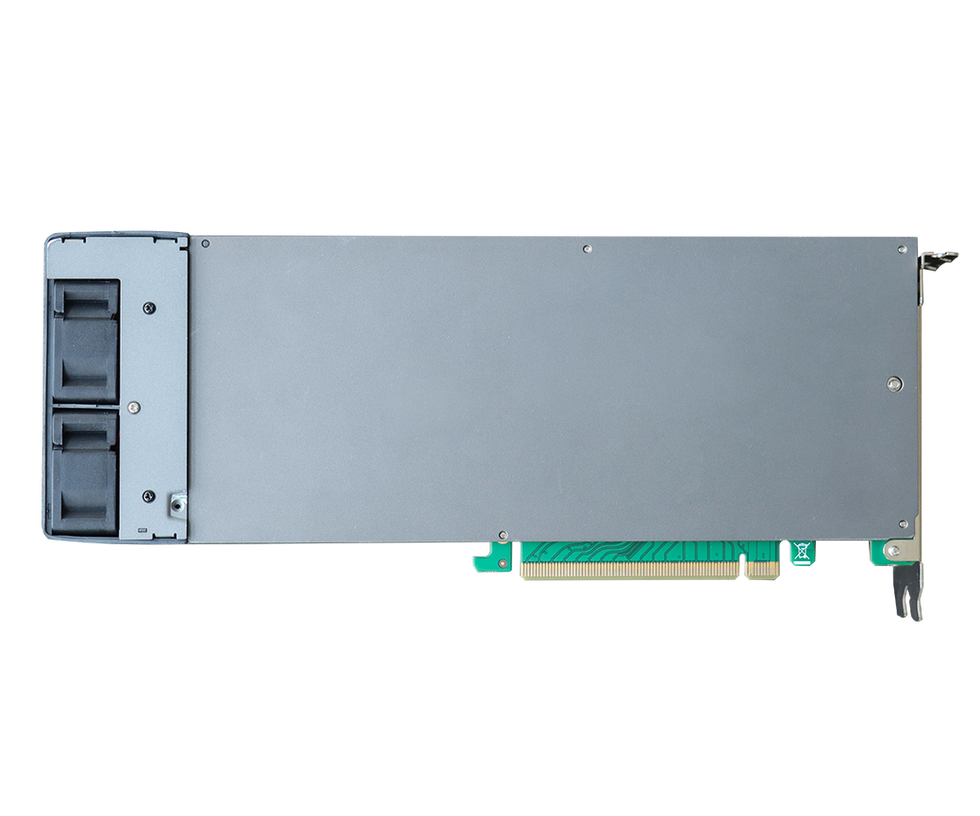

SSD7749E PCIe 4.0 x16 / 8x E1.S Ports

HighPoint’s SSD7749E PCIe 4.0 x16 8-Channel E1.S NVMe RAID AIC was designed for Industrial and Edge Server applications that demand a compact, easily integrated high-density RAID storage solution with blistering PCIe Gen4 x16 performance and enterprise class 24/7 reliability.

The SSD7749E is a simple, cost-efficient PCIe Gen4 RAID storage upgrade solution for Intel and AMD x86 server platforms. The controller can directly host up to eight 9.5mm E1.S SSDs at speeds up to 28,000MB/s, yet is no larger than a modern dual-width PCIe graphics adapter, and can be easily integrated into systems with a free PCIe 4.0 x16 slot.

Key features:

• Ultra-High Density NVMe AIC RAID Solution

• Dedicated PCIe 4.0 x16 host interface

• High-Performance PCIe Gen4 Switching Technology: x16 lanes of dedicated upstream & x4 lanes of downstream bandwidth for each device channel

• 8x Dedicated E1.S NVMe Device Channels

• Supports 8x 9.5mm or 4x 15mm Datacenter Class E1.S SSDs

• Supports RAID 0, 1, 10 and Single-Disk Configurations

• HighPoint SafeStorage Encryption Solution

• Robust, Dual-Width NVMe Cooling Solution

• Tool-less SSD Loading System

• Comprehensive Management Suite with Real-Time SSD TBW and temperature monitoring solution

• Available for Linux & Windows PCs and 2019 & 2023 Mac Pro platforms
