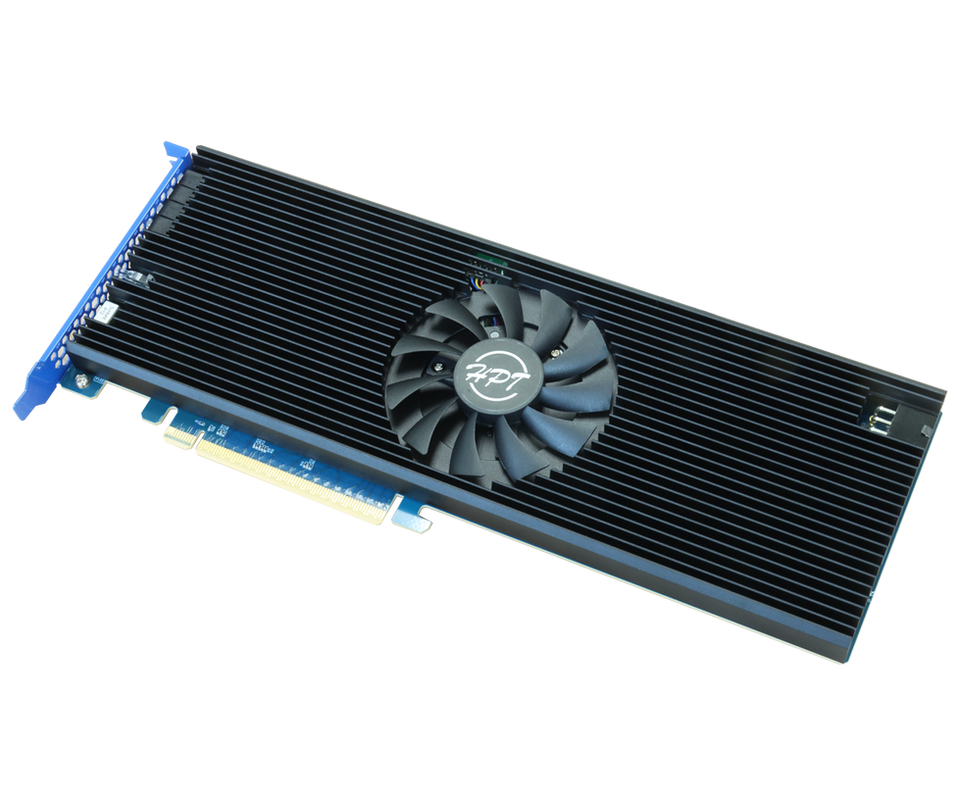

RocketAIC 7608AWx
8x M.2 PCIe 5.0 x16 NVMe AIC SSD
Introducing the RocketAIC 7608AW Series: Industry’s Fastest & Densest Turnkey PCIe Gen5 x16 NVMe Storage Solutions
HighPoint RocketAIC 7608A series NVMe AIC SSDs leverage eight class-leading PCIe Gen5 or Gen4 M.2 SSDs and HighPoint’s revolutionary PCIe Switch Architecture & industry leading RAID technology to deliver 56,000GB/s of real-world transfer performance and up to 64TB of storage capacity, from a single PCIe Gen5 x16 slot.
Engineered for performance-hungry industrial and business applications, the compact, robust AIC SSD form factor directly hosts the NVMe media and incorporates a precision engineered cooling system designed to mitigate performance bottlenecks imposed by thermal throttling.
Key Features
PCIe 5.0 x16 NVMe AIC SSD
32TB to 64TB of preconfigured storage
High-Performance PCIe-Gen5 Switch Architecture: x16 lanes of dedicated upstream with x4 lanes of downstream bandwidth for each NVMe SSD
Sustained transfer speeds up to 56,000MB/s
Equipped with 8x Gen5 or Gen4 M.2 SSDs
Intelligent Pro-Active Gen5 Cooling Solution Prevents Thermal Throttling
Quick & Intuitive Management Suite: Easily Reconfigure RAID storage for your target application and platform
Optional Boot-RAID Capability for Linux & Windows
SafeStorage SED Solution
Model | Capacity | M.2 Media |
RocketAIC 7608AW-A32T0-0F | 32TB | 8 x Samsung 990 Pro 4TB MZ-V9P4T0 M.2 SSDs (Gen4) |
RocketAIC 7608AW-C32T0-10 | 32TB | 8 x Crucial T705 4TB CT4000T705SSD3 M.2 SSDs (Gen5) |
RocketAIC 7608AW-B64T0-11 | 64TB | 8x Sabrent Rocket 4 Plus 8TB M.2 SSDs (Gen4) |
Hardware Features | |
Bus Interface | PCIe 5.0 x16 |
Number of Channel / Port | 8x Device Channels / 8x NVMe Ports (Dedicated PCIe 5.0 x4 per port) |
Performance | Up to 64GB/s |
Capacity | 32TB / 64TB |
SSD Form Factor | M.2 (2280) |
External Power Support | Yes (uses PCIe Standard 2x3 Power Connector) |
LED Indication | Intelligent, Self-Diagnostic LEDs |
Audible Alarm | Yes |
NVMe Sensor Suite | Real Time Power & Temperature Tracking |
Storage Security Suite | |
SED Support | SafeStorage SED Solution |
Hardware Secure Boot | Yes |
Mechanical Specifications | |
Form Factor | Full-Height, Full-Length, Single-Width |
Card Dimensions | 284mm x 110mm (11.18" x 4.33") |
Card Weight | 1.59 lbs. |
PCIe Bracket | Full-Height Ventilated Bracket |
Cooling Solution | Intelligent, Pro-Active PCIe Gen5 Cooling Solution |
• Full-Length Aluminum Heatsink with Low-Decibel Cooling Fan & 2 layers of thermal padding | |
• Copper contact for SSDs accelerates heat dissipation | |
• Compliant with PCIe Specifications | |
• Active Sensor Logging & Analysis Suite | |
Toolless SSD mounting system | Yes |
Supported Systems | |
Supported Operating Systems | Only Supports 64-bit operating systems |
Windows 11, 10 / Windows Server 2022, 2019, 2016 / Microsoft Hyper-V | |
RHEL, Debian, Ubuntu, Fedora, Proxmox & Rocky Linux (Linux kernel 3.10 and later) | |
Platform Support | PC Platforms:
• Any PC System or Motherboard with an industry standard PCIe x16 physical Slot (Bifurcation is not required) |
Secure Boot | Windows OS |
NVMe RAID Management | |
Management Suites | WebGUI (Browser-Based management tool), CLI (Command Line Interface - scriptable configuration tool), API package, UEFI HII |
SMTP Email Alert Notification | Yes |
Alarm Buzzer | Yes |
Storage Health Inspector | Yes |
NVMe SMART status | Yes |
Automatic and configurable RAID Rebuilding Priority | Yes |
Auto resume incomplete rebuilding after power on or reboot system | Yes |
Single-RAID or Multi-RAID Arrays per Controller | Yes |
Cross-Sync RAID Solution Across Controllers | Yes |
Advanced RAID features | |
Online Array Roaming | Yes |
RAID Quick Initialization for fast array setup | Yes |
Global Hot Spare Disk support | Yes |
Operating Environment | |
Working Temp. | 0°C ~ + 55°C |
Storage Temp. | -20°C ~ +80°C |
Operating Voltage | PCIe: 12V(+/- 8%), 3.3V (+/- 8%) |
Power | 82.64W |
MTBF | 1.5 Million Hours |
Kit Contents | |
Kit Contents (RocketAIC 7608AW-A32T0-0F) | 1x RA7608AW-A32T0-0F (includes 8 x Samsung 990 Pro 4TB MZ-V9P4T0 M.2 SSDs) |
Thermal pad: 84*90*0.75mm, K=8, Gray；V100；x1
Thermal pad: 84*90*1.5mm, K=3, Blue；V100；x1
Thermal pad:70*90*0.75mm, K=8, Gray；x1 | |
Thermal pad:70*90*1.5mm, K=3, Blue；x1
Thermal pad: 84*90*1mm, K=8, Gray；V100; x1
Thermal pad: 70*90*1mm, K=8, Gray；x1 | |
8 x additional M.2 rubber twist pins | |
1x QIG | |
Kit Contents (RocketAIC 7608AW-C32T0-10) | 1x RA7608AW-C32T0-10 (includs 8e x Crucial T705 4TB CT4000T705SSD3 M.2 SSDs) |
Thermal pad: 84*90*0.75mm, K=8, Gray；V100；x1
Thermal pad: 84*90*1.5mm, K=3, Blue；V100；x1
Thermal pad:70*90*0.75mm, K=8, Gray；x1 | |
Thermal pad:70*90*1.5mm, K=3, Blue；x1
Thermal pad: 84*90*1mm, K=8, Gray；V100; x1
Thermal pad: 70*90*1mm, K=8, Gray；x1 | |
8 x additional M.2 rubber twist pins | |
1x QIG | |
Kit Contents (RocketAIC 7608AW-B64T0-11) | 1x RA7608AW-B64T0-11 (includes 8 x Sabrent Rocket 4 Plus 8TB M.2 SSDs) |
Thermal pad: 84*90*0.75mm, K=8, Gray；V100；x1
Thermal pad: 84*90*1.5mm, K=3, Blue；V100；x1
Thermal pad:70*90*0.75mm, K=8, Gray；x1 | |
Thermal pad:70*90*1.5mm, K=3, Blue；x1
Thermal pad: 84*90*1mm, K=8, Gray；V100; x1
Thermal pad: 70*90*1mm, K=8, Gray；x1 | |
8 x additional M.2 rubber twist pins | |
1x QIG |
