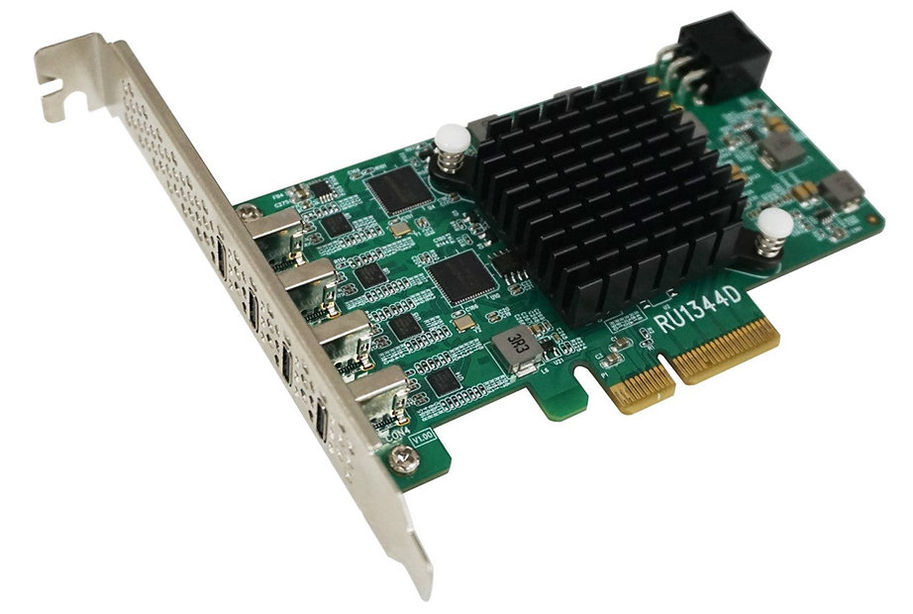

The RocketU 1344D is the latest iteration of HighPoint's industry-leading 4-port USB HBA's, and provides four USB 3.2 ports.
It has been optimized for USB storage devices such as external drives, drive docks and drive enclosures. However, the four universal Type-C ports are fully capable of supporting USB 1.0/2.0/3.x peripherals and input devices such as printers & scanners, mice & trackballs or flash drives and card readers.
4 USB-Type C ports support any industry-standard USB device or peripheral
Up to 10 Gb/s of transfer bandwidth per USB port
PCIe 3.0 x4 Host Interface
Driverless Installation: Native xHCI Support
Each of the RocketU 1344D’s four Type-C ports can support up to 10G of transfer bandwidth, can operate concurrently, and are capable of delivering up to 7.5W of power for device operation or charging purposes.
RocketU 1344D HBA can be easily integrated into workstation and server environments designed to host professional media and industrial applications. The eight industry-standard Type-C USB ports and PCIe 3.0 x4 host interface can easily accommodate a wide range of high-speed data acquisition solutions, including imaging and capture solutions, security systems, and media archiving.
Built for Professional Data Acquisition Solutions
Universal Device Compatibility
Works with any industry-standard USB 3.x/2.0/1.x device
4x 10G USB-C Ports
The RocketU 1344D's four USB Type-C
ports can deliver up to 10 Gb/s of trasnfer bandwidth
USB Device Charging
RocketU 1344D can be used to charge USB compliant devices
xHCI CompliantDriverless Installation: The RocketU 1344D is natively supported modern operating systems
Ultra-High Performance:
Dedicated PCIe 3.0 x4 / x16 Bus-Bandwidth
Universal Device Compatibility
Works with any industry-standard USB 3.x/2.0/1.x device
Universal Device Compatibility
Works with any industry-standard USB 3.x/2.0/1.x device
Universal Device Compatibility
Works with any industry-standard USB 3.x/2.0/1.x device
Universal Device Compatibility
Works with any industry-standard USB 3.x/2.0/1.x device
Universal Device Compatibility
Works with any industry-standard USB 3.x/2.0/1.x device
Universal Device Compatibility
Works with any industry-standard USB 3.x/2.0/1.x device
Universal Device Compatibility
Works with any industry-standard USB 3.x/2.0/1.x device
Specifications
Feature Specifications | |
Host Bus Interface | 4-lane, 8 GT/s PCI Express 3.0 Compliant |
Interface Technology | Supports up to USB 3.2 10Gb/s link speed
Backwards compatible with USB 3.2 Gen2, USB3.2 Gen1 USB 2.0 |
Supported Standard | UASP, xHCI |
Apple M1 Platform Suport | Yes |
Operating System Support (Mac compatibility) | Mac Pro 5,1 or 7,1, macOS 10.12.6 and later, Supports Intel & M1 chipset, Compatible with PCIe slots |
Operating System Support (Windows compatibility) | Windows 11,10,8.1, Windows Server 2022,2016, 2012, 2008 (64-bit editions), Compatible with PCIe slots |
Operating System Support (Linux compatibility) | Linux kernel 3.10.0 and later, Compatible with PCIe slots |
Operating System Support (VMware ESXi compatibility) | Yes |
Secure Boot(PC platforms) | Windows: Support Secure Boot Disable and Enable
Linux: Support Secure Boot Disable and Enable |
Number of Channel / Port | 4 |
Port Type | USB Vertical Type-C |
Data Transfer Rates: | Up to 10Gb/s per port |
Number of Devices | USB 1.x, 2.0, and 3.x compatible devices |
USB port Ampage | 1.5A output per port |
Bus Powered Peripherals | Up to 7.5W per port for device operation or charging |
External Power Support | Yes (6pin PCIe Power Connector) |
USB Port Sharing | Shared: 2 USB ports are assigned to each USB controller (ASM3142) |
Form Factor | Low-Profile |
Cooling system | Anodized Aluminum heat sink |
Dimensions | 5.09'' W x 4.38'' H x 0.67'' D |
Weight | 0.51 lbs. |
Warranty | 1 Year |
Compliance Certification | CE, FCC, RoHS, REACH, WEEE |
Operating Environment | |
Work Temp: | 5°C ~ 45°C |
Storage Temp: | 40°C ~ 65°C |
Operating Voltage | PCI-e: 12V, 3.3V |
Power | Typical: 4.42W (card only) |
MTBF (Mean Time Before Failure) | 920,585 Hours |
Storage Feature | |
Bootable Drive support | Yes (Linux, Mac) |
Drive hotplug support | Yes |
Kit Contents | |
Model | RocketU 1344D |
Controller card | 1x Controller card |
Quick Installation Guide | 1x Quick Installation Guide |
Low Profile Bracket | 1x Low Profile Bracket |
